Parameters
Category: App Studio
Version: 1.0
Last Updated: March 2, 2026
Author: Any2Info
Description
The Parameters tab in the property menu of Dashboards and Forms allows configuration of:
Incoming Parameters
Fixed Filters
Together, these mechanisms provide controlled data filtering at the dataclip level.
Incoming Parameters define filterable inputs for specific dataclips. Fixed Filters assign values to those parameters automatically.
All filtering logic is applied using AND conditions.
Incoming Parameters
Description
An Incoming Parameter defines a filter input for a specific:
Dataclip
Header (field) within that dataclip
It allows external or internal processes to inject a value that filters the dataclip’s data.
Each parameter is strictly bound to one dataclip and one header.

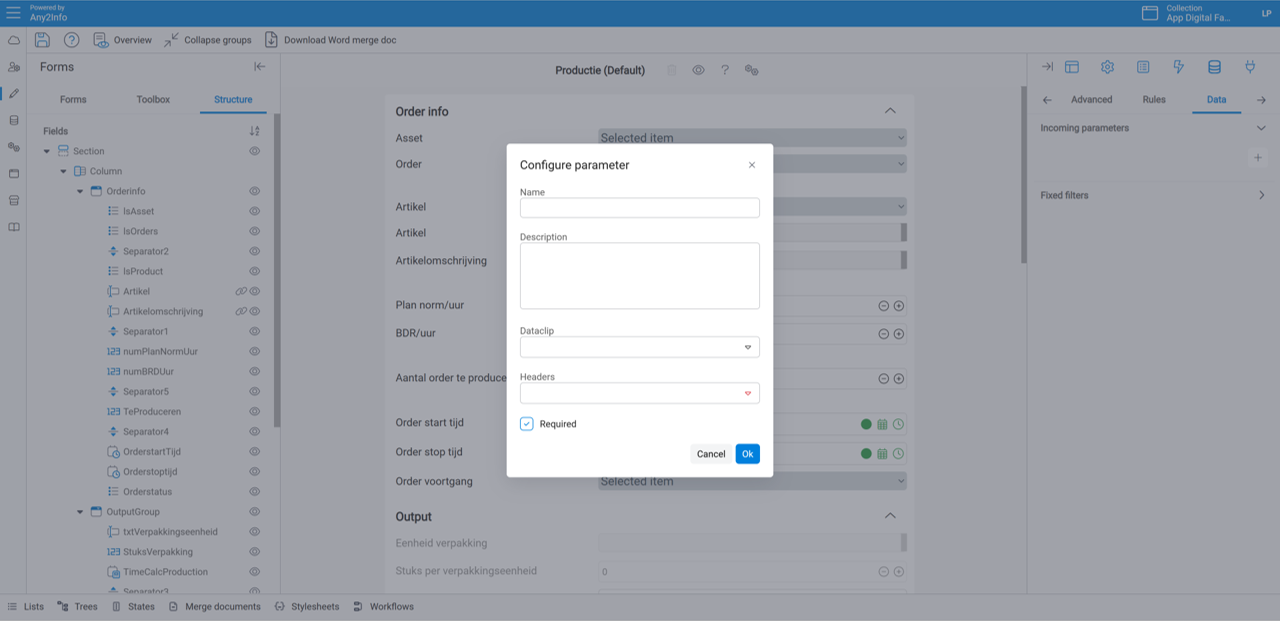

Configuration Options
Name
Yes
Recognizable identifier of the parameter.
Description
No
Informational description used for management purposes.
Dataclip
Yes
The dataclip to which the parameter applies.
Header
Yes
The specific header (field) within the selected dataclip.
Required
No
If enabled, data will not load unless the parameter receives a value.
Type Handling
The parameter type is implicitly determined by the selected header type.
Examples:
Numeric header → Numeric parameter
Date header → Date parameter
Text header → Text parameter
Type validation follows the dataclip header definition.
Behavior
A parameter applies only to its configured dataclip.
Multiple parameters can target the same dataclip.
When multiple parameters apply to the same dataclip, they are combined using AND logic.
Example: CustomerId = 5 AND Status = 'Open'
Required Flag
When Required is enabled:
The dataclip will not load data if the parameter is not set.
A message or logging entry indicates the missing parameter.
This is recommended when working with sensitive data.
Value Sources
Incoming parameters can receive values from:
Fixed Filters
Navigation flows (documented separately)
Security Considerations
Use the Required flag when exposing sensitive datasets to prevent unintended data exposure.
Fixed Filters
Description
A Fixed Filter assigns a value to an Incoming Parameter automatically.
It is not a direct data filter. Instead, it functions as a controlled parameter injector.
Fixed Filters are configured per Dashboard or Form in the Parameters tab.
Configuration Options
Incoming Parameter
Yes
The parameter to which the value will be assigned.
Type
Yes
Determines how the parameter value is generated.
Additional Settings
Depends
Additional configuration depending on selected type.
Supported Types
Static
Assigns a fixed value.
Additional configuration:
Value (must match parameter/header type)
Use case:
Hardcoded filtering (e.g., Status = Active)
User
Assigns the signed-in user's User ID.
No additional configuration required.
Use case:
Restrict data to records owned by the logged-in user.
Username
Assigns the signed-in user's Username.
No additional configuration required.
Use case:
Filtering by username-based ownership.
Variable
Assigns a value from a user-specific variable.
Additional configuration:
Target variable selection
Note: If the selected variable allows user modification, the resulting filter may indirectly change based on user input.
Visibility & Editability
Fixed Filters are not explicitly visible to end users.
They are visible in logging only.
End users cannot edit Fixed Filters.
Variable-based filters may indirectly change if the variable itself is user-editable.
Execution Flow
Fixed Filters assign values to Incoming Parameters.
Incoming Parameters bind values to a specific Dataclip/Header.
Dataclip applies all parameter filters using AND logic.
Data is retrieved accordingly.
Logical Behavior
All parameter filters are combined using AND conditions.
Example: UserId = 12 AND Department = 'Sales'
Best Practices
Use Required for sensitive datasets.
Use User type filters for row-level security.
Avoid multiple parameters targeting the same header.
Use Variables carefully when allowing user-editable values.
Logically separate system-driven filters (Fixed) from navigation-driven parameters.
Changelog
1.0
March 2, 2026
Initial documentation version added.
